Huawei B2338-168 FDD/TD-LTE Outdoor CPE Router – New

Huawei B2338-168 FDD/TD-LTE Outdoor CPE Router – New (with a 5-10 KM Range, this is also suitable for Shopping Malls, Farms and Factories)

The Huawei B2338-168 FDD/TD-LTE Outdoor CPE Router is an enterprise-grade LTE Cat12/Cat13 device designed for high-speed broadband in homes, offices, and rural deployments. It supports download speeds up to 420 Mbps, uplink up to 30 Mbps, and operates on both FDD and TDD LTE bands with advanced MIMO technology.

• Key features
  – Category: Supports LTE Category 12 for downlink and Category 13 for uplink, offering peak speeds of up to 420 Mbps download and 30 Mbps upload.
  – Connectivity: Connects to the internet via 4G LTE, and provides both wired (LAN) and wireless (Wi-Fi) access for multiple users.

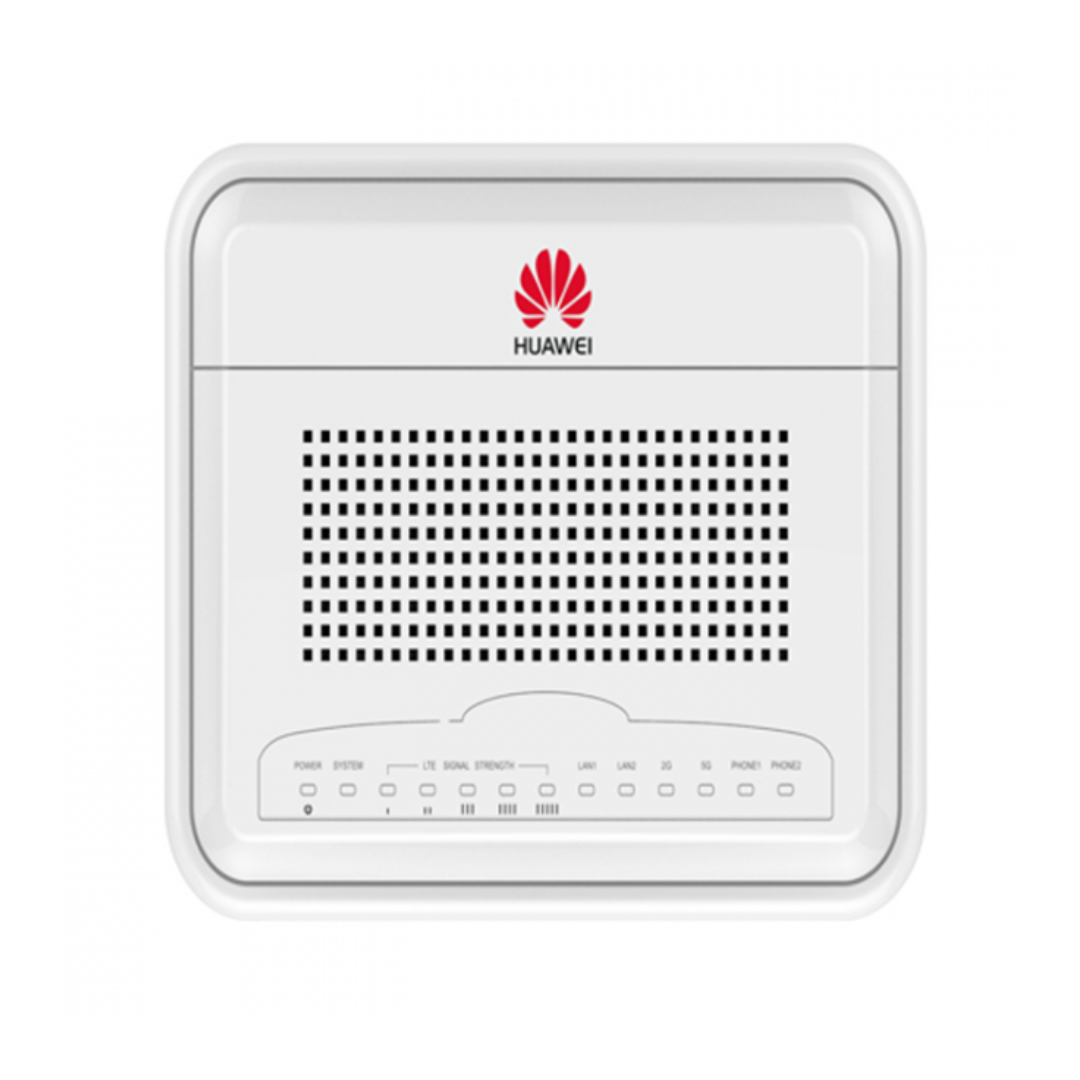

  – Architecture: Consists of two parts: an outdoor unit (ODU) that contains the SIM card slot and LTE modem with a directional antenna, and an indoor unit (IDU) that connects to the ODU via an Ethernet cable (Power over Ethernet).
  – Network compatibility: Supports both FDD and TDD LTE networks and common bands like B1, B3, B7, and B20 in addition to TD-LTE bands.
  – Wi-Fi: Includes dual-band Wi-Fi with 2×2 MIMO (802.11ac/b/g/n) capabilities for wireless connectivity.
  – Antenna: The outdoor unit has a directional antenna to improve signal reception, and the power and connection to the router are handled by a single RJ45 Ethernet cable.
   Usage:
  Ideal for users who want a high-speed broadband connection where fixed-line internet is not available, such as in remote locations, or for businesses needing a reliable internet solution.
  • “Compatible with Windows 11, macOS, Linux, and mobile devices via Ethernet or Wi-Fi.”
  • “No drivers required – plug-and-play connectivity for Windows 11 PCs and laptops.”

Huawei B2338-168 Technical Specifications:

* Form: Outdoor Unit + Indoor Unit
* Chip platform: HiSilicon Balong 750
* Category: LTE DL Cat12, UL Cat13
* Peak Rate: DL 420 Mbps, UL 30Mbps
* Protocol Version: 3GPP Release 10/11/12

* Operating Frequency
– LTE TDD: Band 38/40/41/42/43
– LTE FDD: Band 1/3/7/20

* Carrier Aggregation
– TDD DL 4×4 MIMO + 2CC CA
– TDD UL 2CC CA
– TDD DL 3CC CA
– FDD + TDD 3CC CA

* Modulation
– DL 64QAM, 16QAM, QPSK
– UL 64QAM, 16QAM, QPSK

* Channel Bandwidth: 5 MHz, 10 MHz, 15 MHz, 20 MHz

* TX Power: 23 dBm ± 2 dB

* Antenna
– LTE antenna: 1T4R
– 800-900 MHz: 0 dBi
– 1710–2170 MHz: 6–7 dBi
– 2300–2690 MHz: 7–8 dBi
– 3400–3800 MHz: 8–9 dBi

* MIMO DL 2×2/4×4 MIMO

* LTE Transmission Mode
– LTE TDD: TM2, 3, 4, 7, 8, 9;
– DL 4*4 MIMO @ TM3/4/9
– LTE FDD: TM2, 3

* OS
– Windows 2000 SP4/XP SP2/Vista/Win7/Win8/Win 10 OR Win 11 Compatible
– Mac later than OS X 10.4
– Linux

* Interface
– Outdoor unit: One LAN Data
– Indoor unit: One WAN Data, Two LAN Data, Wi-Fi AP, Two Voice, One USB

* IP Networking: L2/L3 VPN/Multi-APN/IPv4/IPv6/IPv6/v4 dual stack

* Voice VoIP: SIP with G.729a/b, G.711a-law, G.711u-law Code

* Terminal Management: TR069 or SNMPv3

* Wi-Fi: 2×2 MIMO 802.11ac/b/g/n, 2.4 GHz and 5 GHz Wi-Fi

* Wi-Fi Encryption: 64-/128-bit WEP, WPA, WPA2

* Protection Class
– IP65 for the outdoor unit
– IP2X for the indoor unit

Whats in the Box: (New and packaged in original packaging)
Huawei B2338-168 Outdoor CPE
Mounting kit (brackets and screws)
Power supply
User manual
